EVO2_BK - 13 rpm scales - black dial

Technical features

In the "EVO2" dashboard all road functions have been integrated, such as speed, odometer, resettable trip odometer, engine tachometer, water temperature, the main warning lights, in many cases also the reserve warning light may work, and the track functions with the integrated lap timer, both manual and via GPS or infrared receiver, which allows to view lap times and to memorize up to 100 laps which can be visualized directly in the display using the selection buttons.

rpm scales for road use
1-16000 ; 1-15000 ; 1-12000
1-10000 ; 1-8000 ; 1-6000 rpm
rpm scales for track use
3-17000 ; 3-16000,
5-15000 ; 5-13000 rpm

The harnes have to be purchased separately choosing it in the EVO2 web page

Note: for installation on Ducati models from 2003 onward (square plug) it's necessary disable the immobilizer from the ignition unit reprogamming it, for more information write Us an e-mail to info@aviacompositi.it

Made in Italy product
Ectronic cards are designed and produced by Us
Easy installing and connection
Ease of use and setting
Great reliability
Delivered properly setted for the bike where has to be installed
Clear operating instructions
For doubt, installation problems, repair and-or RPM scale changes, contact us at info@aviacompositi.it

Warranty: 2 years with direct assistance

In case of wrong connection no damage risk for EVO2 nor for the bike

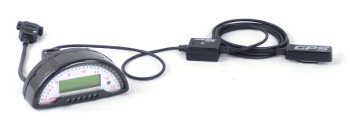

Also available GPS or infrared automated lap timer system which can be combined with all EVO2 produced even in the past. For details see this link> GPS Kit for track use

Other infos
EVO2 digital dashboard are designed and totally produced in our factory. Our dashboards are utilized by several years in competitions and in the standard bikes. Over time they have shown great reliability and flexibility of use since it is possible to adapt them on almost all models of motorcycles, quads and also on many cars. For any installation problem, a technical service is available to explain how to do or how to resolve any difficulties encountered.

Installation
the installation is simplified, in some cases we give the proper plug for the bike, where this is not possible we give numbered wires with a connection scheme. Mounting by two rear fitting points.

ALREADY INSTALLED ON

APRILIA: RSV1000, RS250, RS125. BIMOTA: all models. CAGIVA: Raptor 1000 - 650, Elephant, Mito. CR&S: Vun. DUCATI: 1198-1098-848-999-749-998-996-916-748 (SP e R versions too) Monster S4RS, S4R, S4, S2R, S2, 1000i, 800, 620, 900i, 900, 750, 600, SS, ST2, ST3, ST4. GILERA: Nordwest. GUZZI: V11 / V10 / V750, GHEZZI & BRIAN: Furia - HONDA: CBR1000 "RR" - CBR 600 "RR" (all years), CBR 900/ 600 (all years), HORNET 600-900 (all years) VFR, VTR1000F, VTR1000 SP1, SP2 CRF 450 RS 125, 250. KAWASAKI: ZX-10R - ZX 6-R- Z1000-Z750- ZX 9-R, ZX 7-R, ZXR 750. MV AGUSTA: F4 - Brutale. SUZUKI: GSX-R 1000 / 750 / 600 (all years), SV650, TL1000R/S, BANDIT, GSX1100, 1000, RG500, RGV GAMMA 250 / 500. RADICAL DUCATI, TRYUMPH: Speed triple, 955i. YAMAHA: R1- R6 (all years),TUNDERCAT, TUNDERACE, FZR 600 / 1000, RD350, RD500, T-MAX.
